Baterie cu litiu personalizată cu ciclu profund 36V 48V 72V 50ah 80ah 100ah pentru cărucior de golf RV camper

2024-03-15 02:39

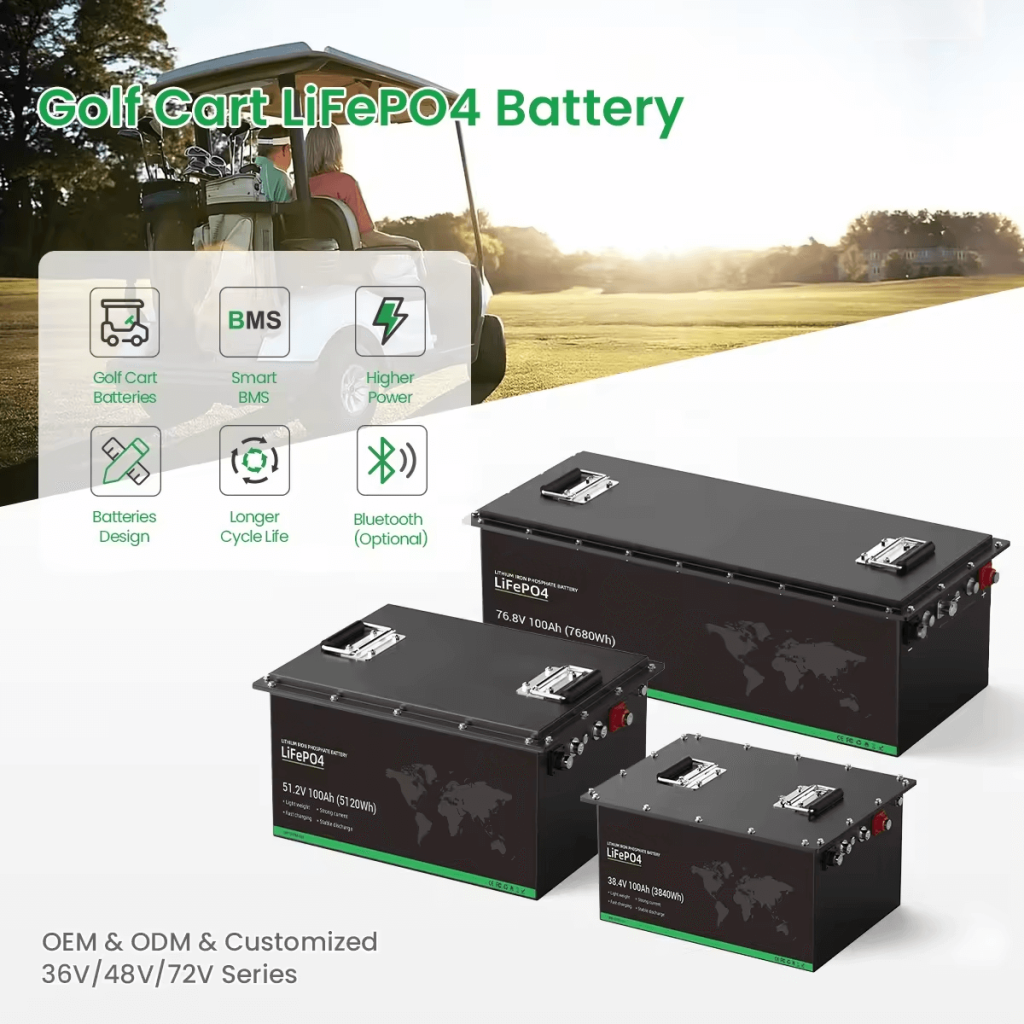

LiFePO4 Battery for Golf Cart ( OEM/ODM )

TECHNICAL SPECIFICATION

Data sheetTensiune nominalăCapacitate nominalaNominal EnergyDimensiuneGreutate
36V  (Support Customized Capacity/Size)
LFP36-5038,4V50Ah1920Wh522*238*218mm≈18.5kg
LFP36-6038,4V60Ah2304Wh522*238*218mm≈21kg
LFP36-8038,4V80Ah3072Wh522*238*218mm≈25.5kg
LFP36-10038,4V100Ah3840Wh522*238*218mm≈31kg
48V  (Support Customized Capacity/Size)
LFP48-5051.2V50Ah2560Wh522*238*218mm≈25kg
LFP48-6051.2V60Ah3072Wh522*238*218mm≈31kg
LFP48-8051.2V80Ah4096Wh522*238*218mm≈32.5kg

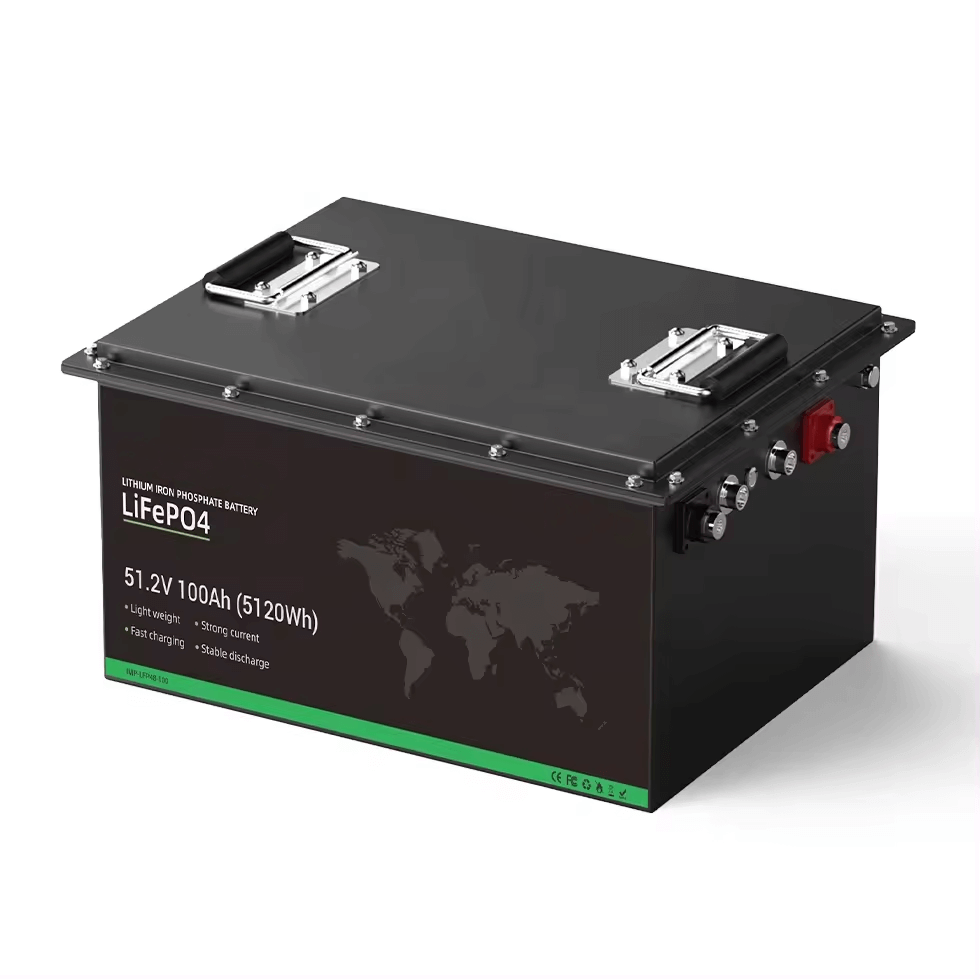

LFP48-10051.2V100Ah5120Wh640*245*220mm≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-5076,8V50Ah3840Wh470*330*150mm≈50kg

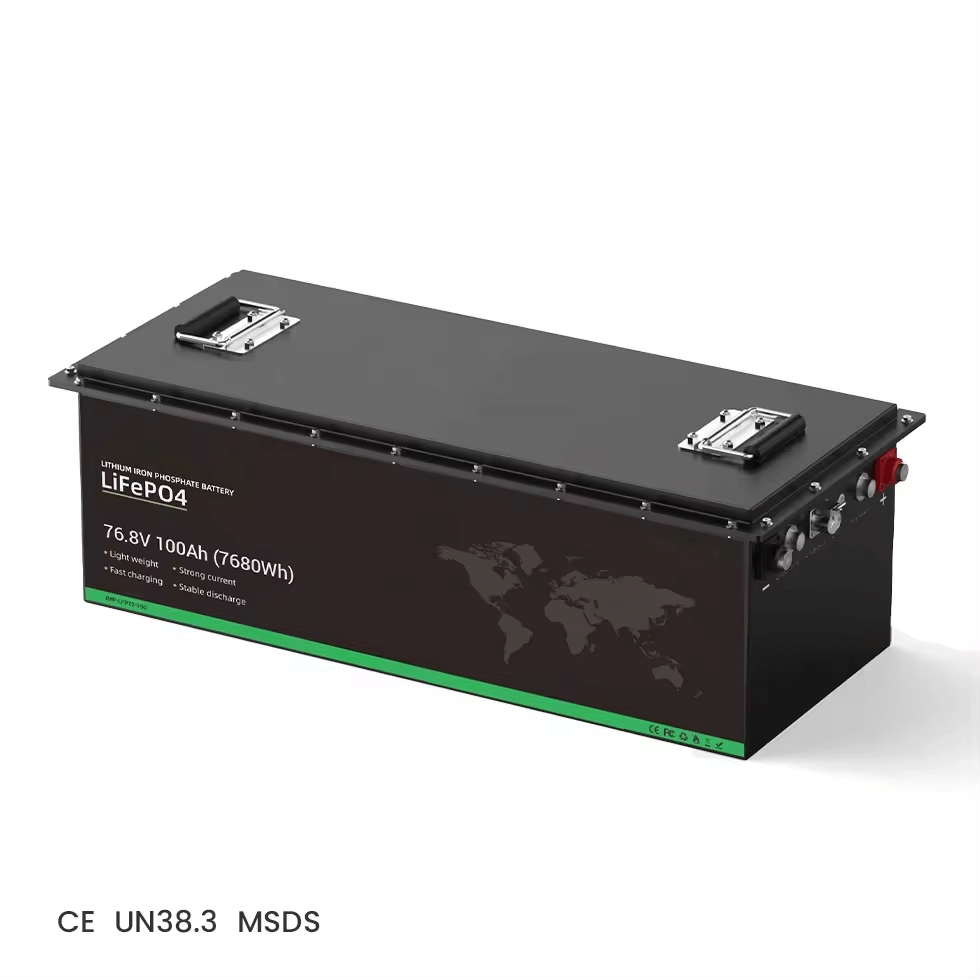

LFP72-10076,8V100Ah7680Wh730*350*150mm≈65kg
General
Cicluri de viață≥6000 cycles (80%DOD), at 25°C
Temperatura de încărcare0 ~ 45°C (32 ~ 113°F)
Temperatura de descărcare-20 ~ 55°C(-4 ~ 131F)
Temperatura de depozitare-10 ~ 45°C(14 ~ 113°F)
Communication ModVehicle CAN/ Charge CAN/ Intranet CAN/

485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Performanţă

  1. Single battery operation
  2. Little or no voltage drop
  3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

  1. No acid fumes or spills
  2. Reduce use of electricity
  3. Less waste
  4. 99% recyclable

cerere

Fabrica noastra



Transport și ambalare

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Pentru comenzi mari, expediați prin AIR sau OCEAN.

FAQ

Î: Sunteți companie comercială sau producător?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Î: Pot avea probe de testat? Și care este termenul de livrare pentru comanda eșantionului?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Î: Acceptați OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
R: DA, aplicația vă permite să citiți tensiunea fiecăruia în orice moment.

Î: Aveți capacitate reală a bateriei?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Î: Ce fel de certificate aveți?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Î: Aveți MOQ?
R: Nu este limitat. Comandă mică și bun venit. Mai multă cantitate are un preț mai bun, vom verifica cel mai bun preț pentru dvs.

Î: Care este termenul dvs. de plată?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
R: Folosind încărcătoare cu litiu pentru a trezi bateria. Încărcătorul cu litiu trezește automat bateriile.

Notă: Suntem un producător de baterii. Toate produsele nu acceptă comerțul cu amănuntul, facem afaceri B2B. Vă rugăm să ne contactați pentru prețurile produselor!
