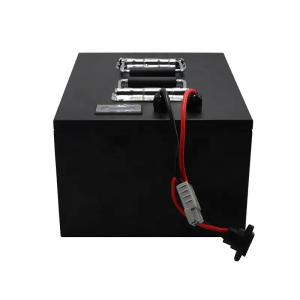

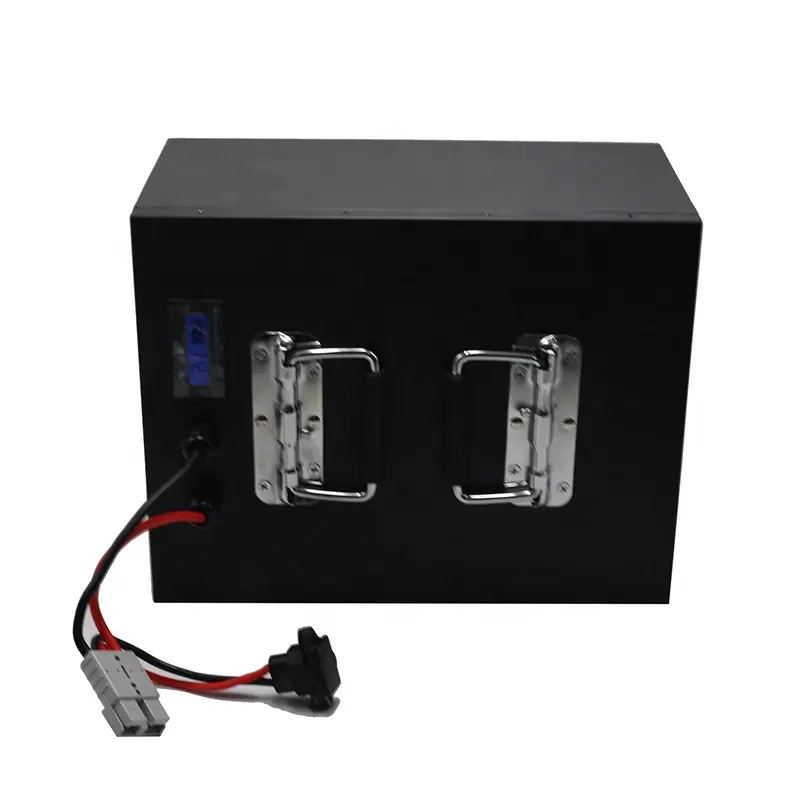

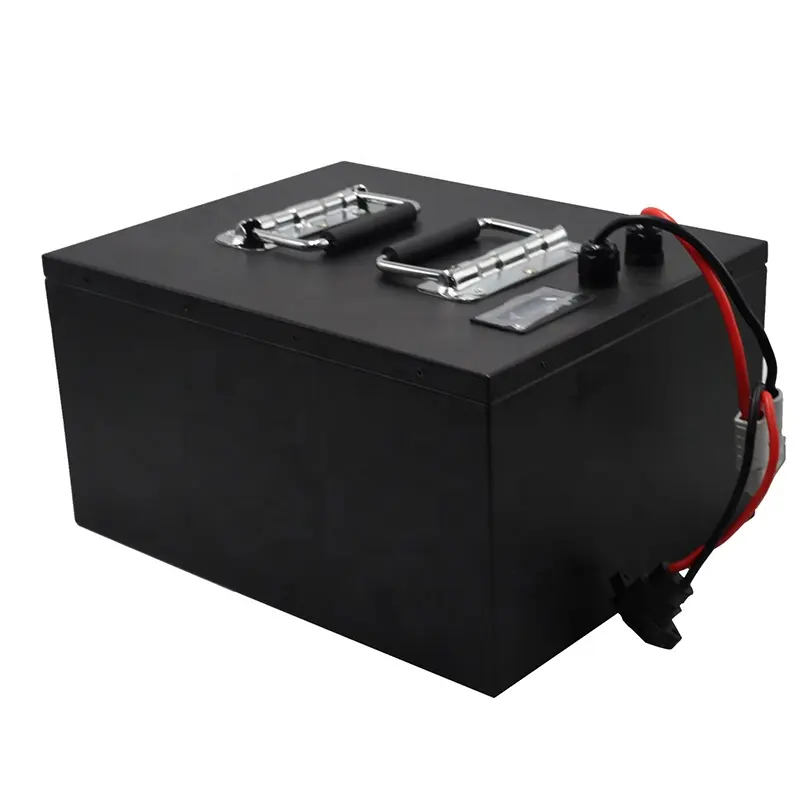

Pachet de baterii personalizate LiFePO4 72v 60ah Baterie pentru vehicule electrice Pachet de ioni de litiu pentru mașini EV

2023-06-06 02:13

Specificație

Numele mărciiTOATE INTR-UNUL
ModelAIN7260
garanţie5 ani
Tensiune nominală76,8V
Capacitate nominala[email protected]/customize
Energie4416Wh
Rezistență internă≤50mΩ
Ciclul de viață4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Descărcare de sine≤3,5% pe lună la 25 ℃
Tensiune maximă de încărcare87.6 V
Mod de încărcareAt 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Curent de încărcare30A
Curent maxim de încărcare60A
Curent de descărcare30A
Max. discharge Continuous Current60A
Curent maxim de impuls120A(<3S)
Tensiunea de întrerupere a descărcării60V
Temperatura de încărcare0 ℃ la 45 ℃ (32 ℉ la 113 ℉) @ 60 ± 25% Umiditate relativă
Temperatura de descărcare-20 ℃ la 60 ℃ (-4 ℉ la 140 ℉) @ 60 ± 25% Umiditate relativă
Temperatura de depozitare0 ℃ la 45 ℃ (32 ℉ la 113 ℉) @ 60 ± 25% Umiditate relativă
Rezistența la praf de apăIP55
Celulă și formatLFP  60AH 24S1P/customize
CarcasăMetal Case
Dimensiune (L * W * H * TH)personalizați
Greutate50kg
TerminalM6 or Anderson or another bolt screw
Peak discharge current BMS60A
High temp port. Low temp port.over charge port. over discharge port.
Metoda de încărcareCC / CV-
Terminal TypeM6 or Anderson or another bolt screw/customize
CertificatCE, RoHS ,MSDS and UN38.3 certification
applicationsGolf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric
Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Aducere aminte

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

cerere

Fabrica noastra

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

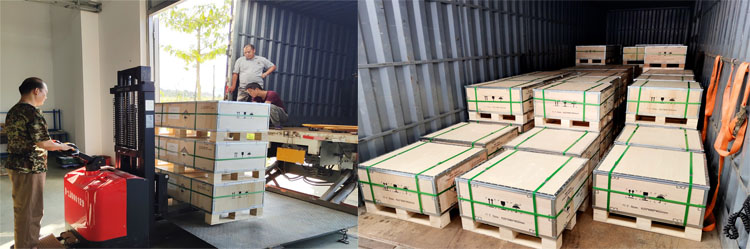

Ambalare și transport

Ambalare

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

livrare

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

Î: Cum ar trebui să plătesc? Ce moduri de plată acceptați?
A: T/T, PayPal, Western Union.

Î: Este acceptabilă comanda eșantionului?
R: Da, pentru majoritatea bateriilor, eșantionul de comenzi pentru testarea calității este rezonabil și acceptabil.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Î: Care este garanția dvs.?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Pentru daunele cauzate, cum ar fi umflarea bateriei / sudate, bateria fără protecție BMS cauzată de încărcare.

Notă: Suntem un producător de baterii. Toate produsele nu acceptă comerțul cu amănuntul, facem afaceri B2B. Vă rugăm să ne contactați pentru prețurile produselor!
