Specificație
# | Articol | Parametru | Observație | ||
1 | Capacitate nominala | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3,2V | |||
3 | AC Impedance Resistance(1KHz) | ≤0,5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Temperatura de încărcare | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Temperatura de descărcare | -20°C~55°C | |||
9 | Temperatura de depozitare | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
Dimensiune | Lăţime | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5 mm | |||
14 | High( Total) | 200,5 ± 0,5 mm | |||
15 | High( Subject) | 195,5 ± 0,5 mm | |||
16 | Tabs Distance | 67,0 ± 1,0 mm | |||
17 | Greutatea bateriei | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
cerere
Fabrica noastra

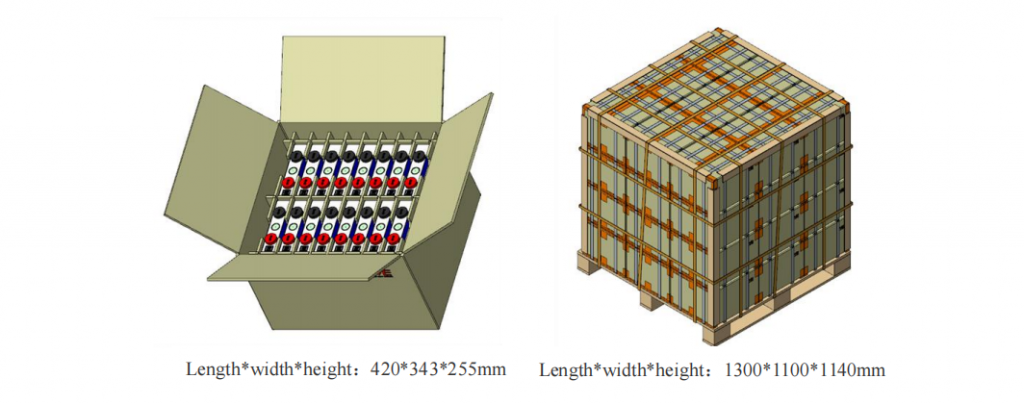

Ambalare și transport
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
Depozitare
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
FAQ
Q1. Pot comanda o probă?
A. Da, salutăm comanda de probă pentru a testa și verifica calitatea.
Q2. Dar timpul de livrare?
A. Proba are nevoie de 3 zile, timpul de producție în masă are nevoie de 5-7 săptămâni, depinde de cantitatea de comandă.
Q3. Aveți vreo limită MOQ?
A. Da, avem MOQ pentru producția în masă, depinde de diferitele numere de piese. 1 ~ 10 buc comandă eșantion este disponibil. MOQ scăzut, 1 buc pentru verificarea eșantionului este disponibil.
Q4. Cum expediați mărfurile și cât durează pentru a ajunge?
A. De obicei, durează 5-7 zile pentru a ajunge. Transportul aerian și maritim este, de asemenea, opțional.
Q5. Cum să procedăm cu o comandă?
A. În primul rând, spuneți-ne cerințele sau aplicația dvs. În al doilea rând, cităm în funcție de cerințele dvs. sau de sugestiile noastre. Clientul în al treilea rând confirmă eșantioanele și plasează un depozit pentru comanda formală. În al patrulea rând, aranjăm producția.
Q6. Este bine să-mi tipăresc sigla pe produs?
A. Da. Vă rugăm să ne informați formal înainte de producția noastră și să confirmați proiectarea în primul rând pe baza eșantionului nostru.
Q7.Ce certificate aveți?
A: Avem CE / FCC / ROHS / UN38.3 / MSDS ... etc.
Q8.Cât despre garanție?
A: 3 ani garanție
